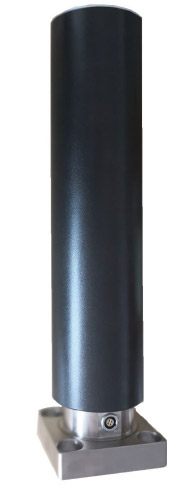

產品圖片
PRODUCT IMAGE

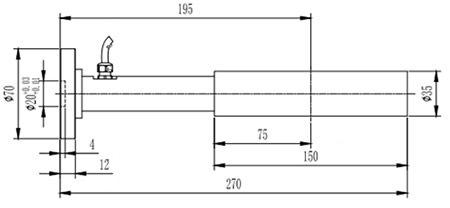

安裝尺寸
MOUTING DIMENSION
特點與用途
FEATURES & APPLICATIONSl 張力測量傳感器
l 結構緊湊便于安裝
l 防護等級：IP65
l 超強防護能力
l simply bolted into place
l IP65 protection
l For the measured objects of static and dynamic load monitoring. Such as cranes, presses and roll stand
技術參數
SPECIFICATIONS參數 | Specifications | 技術指標/Technique |
額定容量 | Capacity | 10,20,50kg |
輸出靈敏度 | Rated Output | 1.0±20%mV/V |
零點輸出 | Zero balance | ±0.05mV/V |
非線性 | Non-linearity | 0.1%F.S. |
滯后 | Hysteresis | 0.1%F.S. |
溫度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點溫度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~12V |
最大激勵電壓 | Maximum excitation | 15V |
溫度補償范圍 | Compensated temp range | -10~60℃ |
工作溫度范圍 | Operation temp range | -20~80℃ |
安全超載 | Safe overload | 150%F.S. |
極限超載 | Ultimate overload | 200%F.S. |
電纜線尺寸 | Cable size | Φ5×2000mm |
材料 | Material | Alloy Aluminum（鋁合金） |
防護等級 | IP Class | IP65 |
受力方式
LOAD DRIRECTION
配線圖
WIRING CODE
