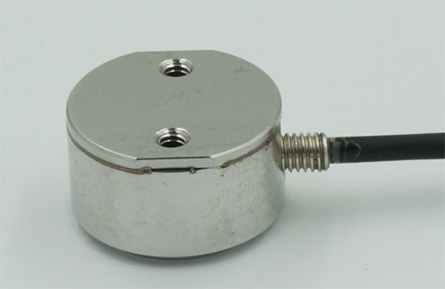

產品圖片
PRODUCT IMAGE

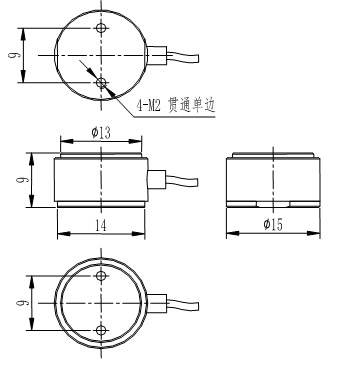

安裝尺寸
MOUTING DIMENSION
特點與用途
FEATURES & APPLICATIONSl 微型傳感器，精度高，帶過載保護功能
l 不銹鋼或鋁合金材料
l 拉壓雙向
l 汽車壓裝、自動化組裝、3C產品測試、新能源產品組裝、醫療檢測、機器人領域，模具組裝及其他工業測試、測量及控制系統
l 動態響應頻率高
l Miniature load cel ad High precision with anti-overload protection
l Made of stainless steel or Aluminum
l Tension and compression application
l Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
l High dynamic response frequency
技術參數
SPECIFICATIONS參數 | Specifications | 技術指標/Technique |
額定容量 | Capacity | 10,20,50,100,200N |
輸出靈敏度 | Rated output | 2.0±10%mV/V |
零點輸出 | Zero balance | ±0.02 mV/V |
非線性 | Non-linearity | 0.05%F.S. |
滯后 | Hysteresis | 0.05%F.S. |
重復性 | Repeatability | 0.05%F.S. |
蠕變（30min） | Creep(30min) | 0.05%F.S. |
溫度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點溫度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 350±30Ω |
輸出電阻 | Output impedance | 350±5Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5V |
最大激勵電壓 | Maximum excitation | 15V |
溫度補償范圍 | Compensated temp range | -10~60℃ |
工作溫度范圍 | Operation temp range | -20~80℃ |
安全超載 | Safe overload | 150%F.S. |
極限超載 | Ultimate overload | 300%F.S. |
電纜線尺寸 | Cable size | φ2×4000mm |
單件重量 | Weight approx. | 0.1kg |
材料 | Material | Stainless Steel |
防護等級 | IP Class | IP66 |
